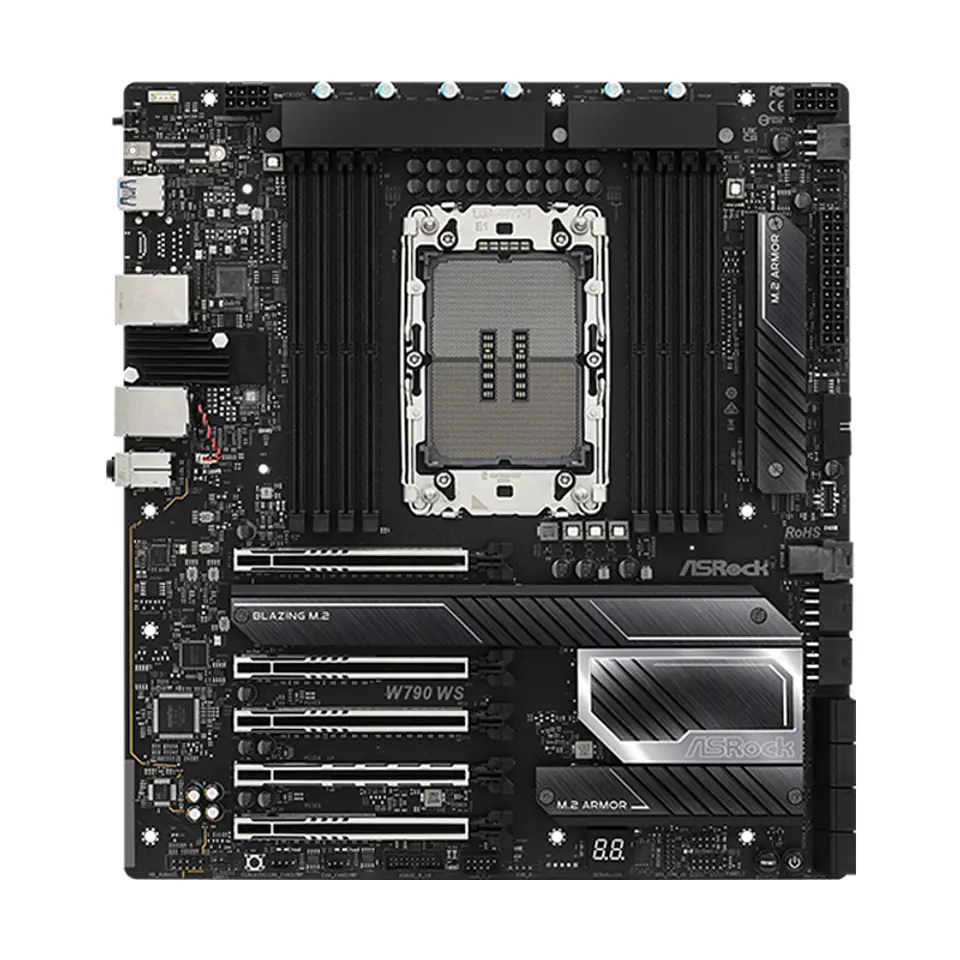

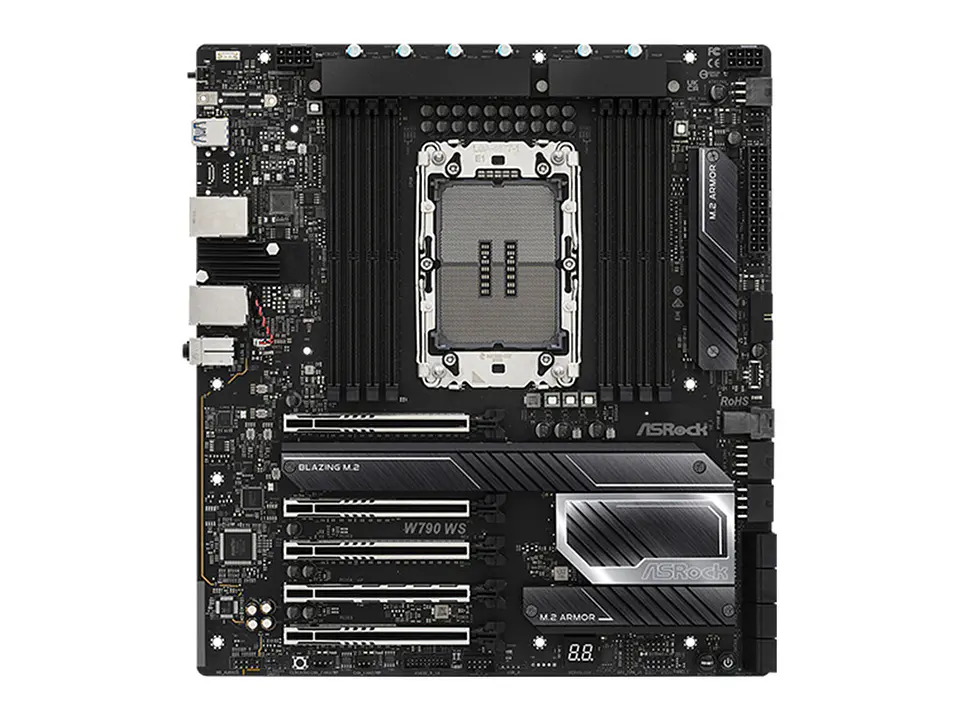

Soporta Procesadores Intel XEON W2400, W2500, W3400 y W3500, 8 x ranuras de memoria RDDR5 / maximo de 2048 GB, Almacenamiento 4 x M.2 Key-M slots / 8 x SATA 6Gb/s, Sonido Realtek 7.1 / Audio HD Codec, 1 x Marvell AQ 10000Gbps, 1 x Intel 2.5Gbps Ethernet (RJ-45), Formato E-ATX.
| Modelo | W790 Ws R2.0 |
|---|---|
| Chipset | Intel W790 |
| Tipo de socket | LGA4677 Intel |
| Intel compatible | Procesador Xeon S4677 W3500 Series | Procesador Xeon S4677 W3400 Series | Procesador Xeon S4677 W2500 Series | Procesador Xeon S4677 W2400 Series |
| Compatibles | Memoria RAM DDR5 ECC Registered 5600 MHz |
| Expansion maxima en GB | 2048 |
| Tecnologia | Quad Channel |
| Tipo de ram | RDDR5 |
| Numero de sockets rdimm | 8 |
| Canales | 7.1 |
| Velocidad | 10 Mbps | 100 Mbps | 1000 Mbps | 2500 Mbps | 5000 Mbps | 10000 Mbps |
| Chipset 2do ethernet | Intel I226LM |
| Velocidad 2do ethernet | 10 Mbps | 100 Mbps | 1000 Mbps | 2500 Mbps |
| Numero de puertos | 8 |
| Velocidad de transferencia | 6 Gbit/s |
| RAID SATA | RAID 10 | RAID 5 | RAID 1 | RAID 0 |
| Numero total de slots m.2 key m | 4 |
| 1 X PCIE 5.0 x4 tipos | 2230 | 2242 | 2260 | 2280 |
| 2 X PCIE 5.0 x4 tipos | 2260 | 2280 |
| RAID PCIE o NVME | RAID 10 | RAID 5 | RAID 1 | RAID 0 |
| PCI express x16 slot, PCIE 5.0 modo x16 | 2 |
| PCI express x16 slot, PCIE 5.0 modo x8 | 2 |
| PCI express x16 slot, PCIE 4.0 modo x4 | 1 |
| Front panel audio header | 1 |
Marca: ASRock | Garantía: 12 meses
