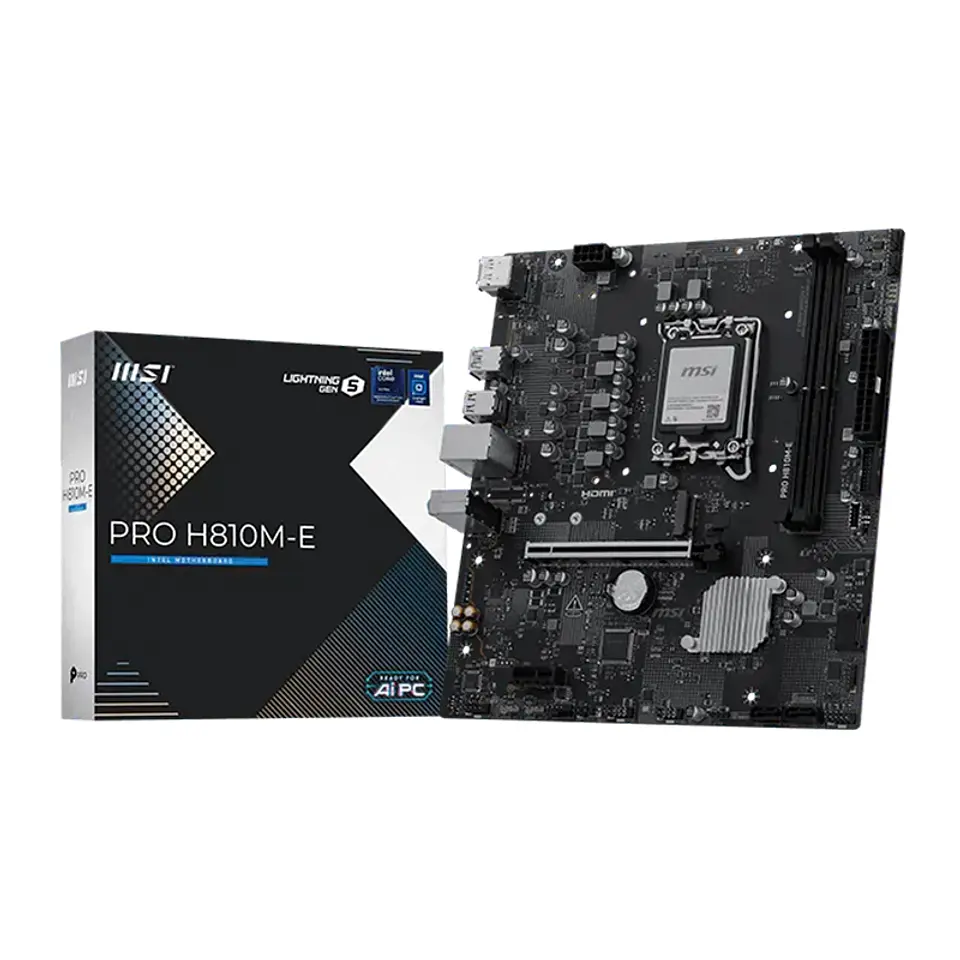

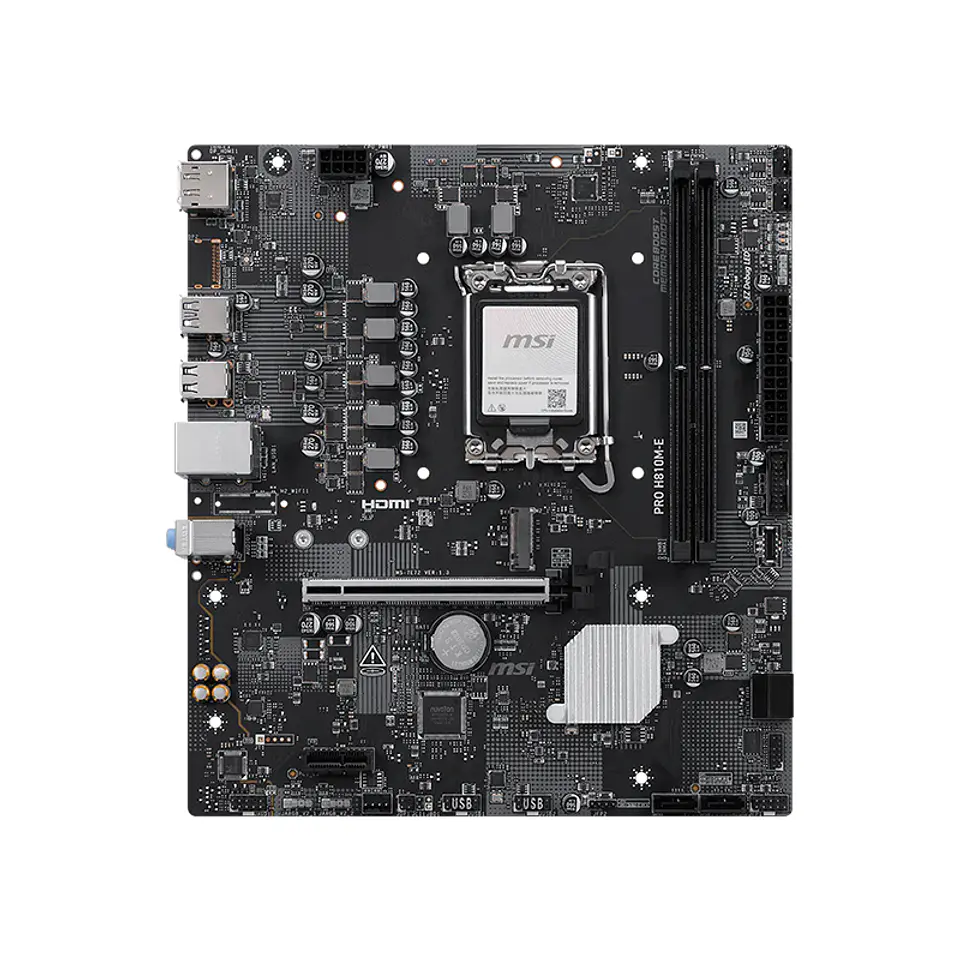

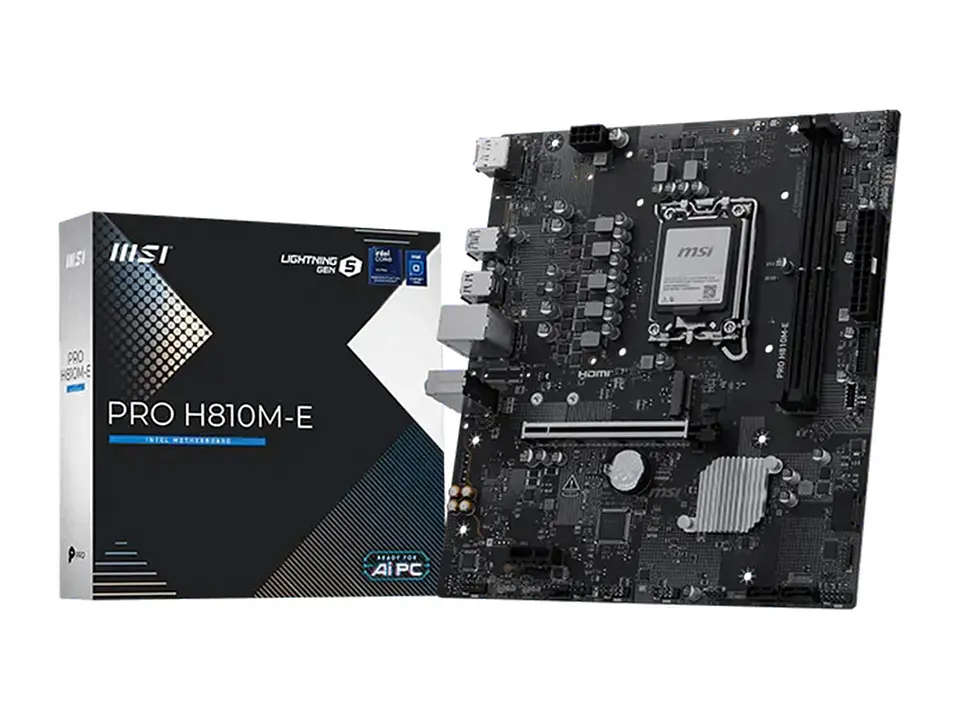

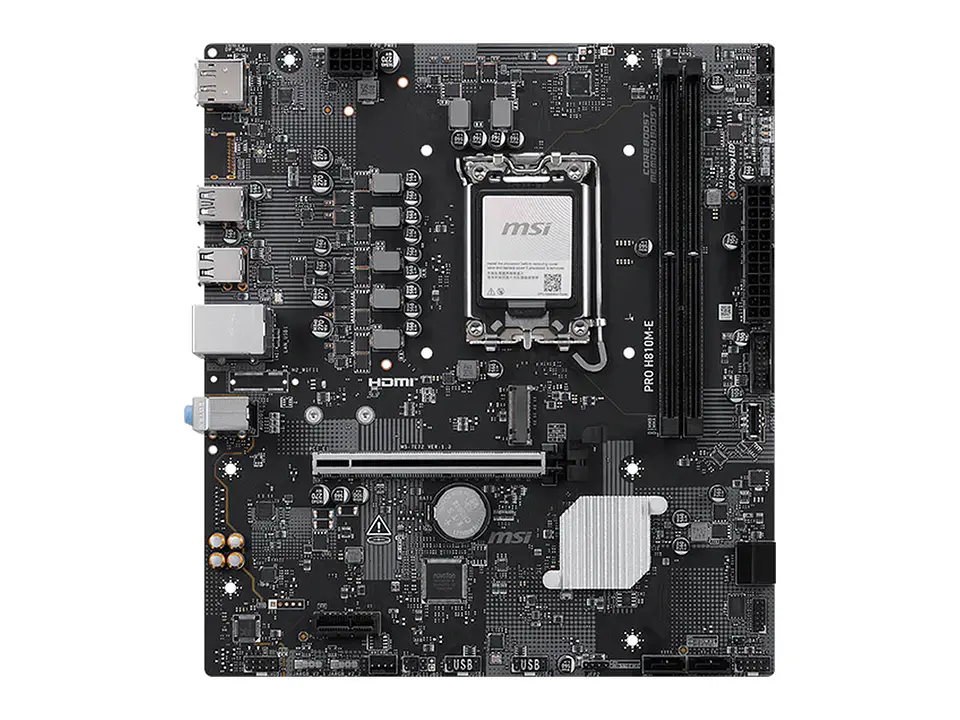

Soporta Procesadores de Intel Core Ultra Processors Series 2 / 2 x ranuras de memoria DDR5 (capacidad maxima de 128 GB) / Almacenamiento 1 x M.2 (PCIe 4.0 x4), 4 x SATA 6Gb/s / Audio Realtek ALC897 Codec, 7.1-Channel Audio HD / 1 x Realtek 2.5Gbps LAN (RJ-45) / Formato mATX.
| Modelo | Pro H810M-E |
|---|---|
| Chipset | Intel H810 |
| Tipo de socket | LGA1851 Intel |
| Intel compatible | Procesador Core Ultra 9 S1851 - Series 2 | Procesador Core Ultra 7 S1851 - Series 2 | Procesador Core Ultra 5 S1851 - Series 2 | Procesador Core Ultra 3 S1851 - Series 2 |
| Compatibles | Memoria RAM DDR5 6400 MHz PC5-51200 | Memoria RAM DDR5 6000 MHz PC5-48000 | Memoria RAM DDR5 5600 MHz PC5-44800 | Memoria RAM DDR5 5200 MHz PC5-41600 | Memoria RAM DDR5 4800 MHz PC5-38400 |
| Numero de sockets DIMM | 2 |
| Expansion maxima en GB | 128 |
| Tecnologia | Dual Channel |
| Tipo de ram | DDR5 |
| Video | Revisar caracteristicas del procesador |
| Canales | 7.1 |
| Velocidad | 100 Mbps | 1000 Mbps | 2500 Mbps |
| Numero de puertos | 4 |
| Velocidad de transferencia | 6 Gbit/s |
| Numero total de slots m.2 key m | 1 |
| 1 X PCIE 4.0 x4 tipos | 2260 | 2280 |
| PCI express x16 slot, PCIE 5.0 modo x16 | 1 |
| PCI express x16 slot, PCIE 4.0 modo x1 | 1 |
| Front panel audio header | 1 |
| USB 3.2 gen 1 header | 2 |
| USB 2.0 header | 4 |
| USB 3.2 gen 1 tipo-c header | 1 |
| TPM 2.0 header | 1 |
| USB 3.2 gen 1 tipo-a | 2 |
Marca: MSI | Garantía: 18 meses
