Soporta Procesadores de Intel Core Ultra Processors Series 2, 4 x ranuras de memoria DDR5 / maximo de 256 GB, Almacenamiento 5 x M.2 PCIe /4 x SATA / 7.1-Channel Audio HD, 1 x 5.0 Gbps LAN (RJ-45), 1 X Wi-Fi , Bluetooth , Formato ATX.

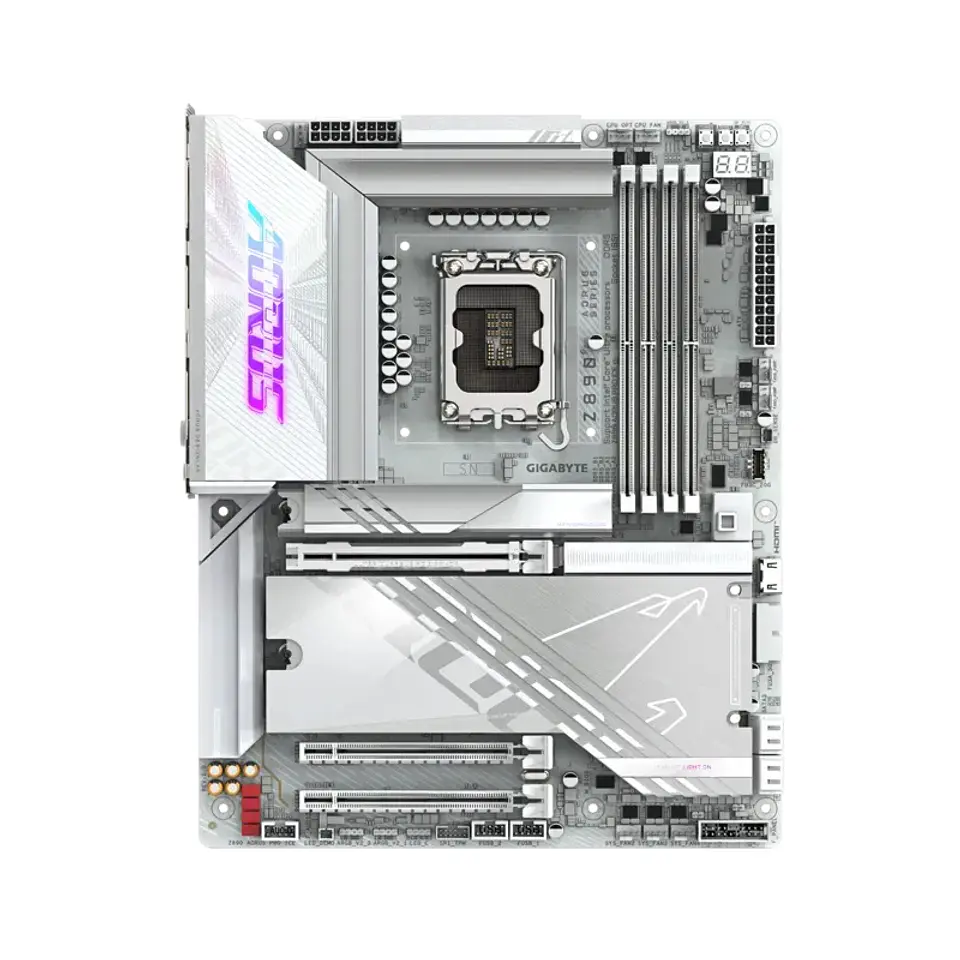

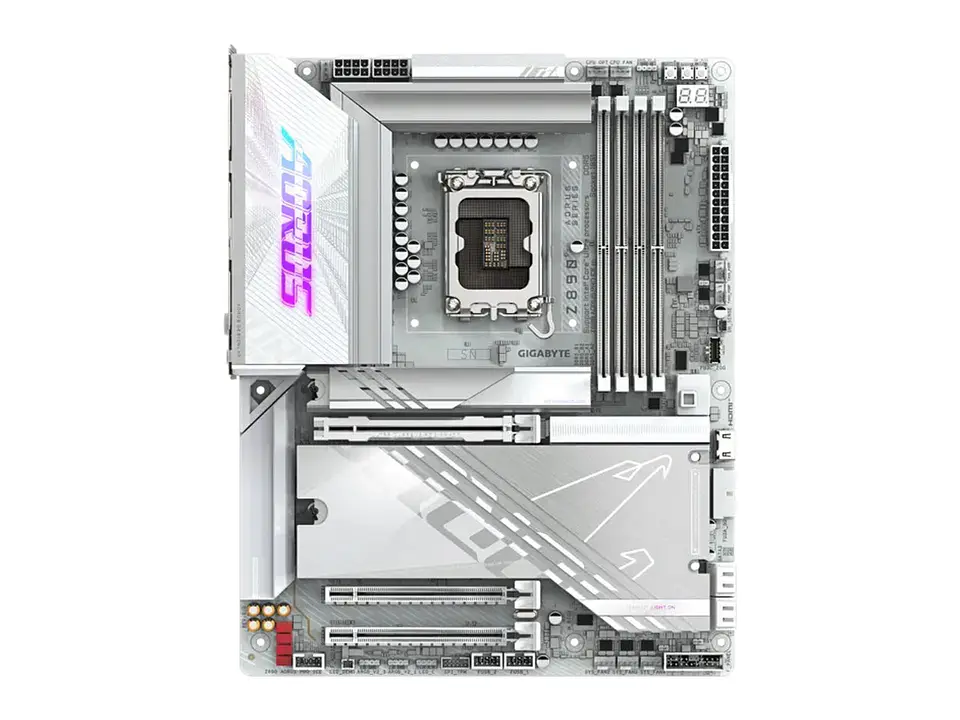

| Modelo | Z890 Aorus Pro Ice |
|---|---|
| Chipset | Intel Z890 |
| Tipo de socket | LGA1851 Intel |
| Intel compatible | Procesador Core Ultra 9 S1851 - Series 2 | Procesador Core Ultra 7 S1851 - Series 2 | Procesador Core Ultra 5 S1851 - Series 2 | Procesador Core Ultra 3 S1851 - Series 2 |
| Compatibles | Memoria RAM DDR5 8200 MHz PC5-65600 | Memoria RAM DDR5 7600 MHz PC5-60800 | Memoria RAM DDR5 7200 MHz PC5-57600 | Memoria RAM DDR5 6800 MHz PC5-54400 | Memoria RAM DDR5 6400 MHz PC5-51200 | Memoria RAM DDR5 6000 MHz PC5-48000 | Memoria RAM DDR5 5600 MHz PC5-44800 | Memoria RAM DDR5 5200 MHz PC5-41600 | Memoria RAM DDR5 4800 MHz PC5-38400 |
| Numero de sockets DIMM | 4 |
| Expansion maxima en GB | 256 |
| Tecnologia | Extreme Memory Profile (XMP) | Dual Channel |
| Tipo de ram | DDR5 |
| Video | Revisar caracteristicas del video del procesador. |
| Canales | 7.1 |
| Velocidad | 100 Mbps | 1000 Mbps | 2500 Mbps | 5000 Mbps |
| Protocolos | 802.11be | 802.11ax | 802.11ac | 802.11n | 802.11g | 802.11b | 802.11a |
| Bandas de frecuencia | 6 GHz | 5 GHz | 2.4 GHz |
| Bluetooth version | 5.4 |
| Numero de puertos | 4 |
| Velocidad de transferencia | 6 Gbit/s |
| RAID SATA | RAID 10 | RAID 5 | RAID 1 | RAID 0 |
| Numero total de slots m.2 key m | 5 |
| 1 X PCIE 5.0 x4 tipos | 2280 | 2580 | 22110 | 25110 |
| 1 X PCIE 4.0 x4 tipos | 2280 | 22110 |
| 1 X PCIE 4.0 x4 y SATA tipos | 2280 |
| RAID PCIE o NVME | RAID 10 | RAID 5 | RAID 1 | RAID 0 |
| PCI express x16 slot, PCIE 5.0 modo x16 | 1 |
Marca: Gigabyte | Garantía: 18 meses
